Industrial 4-Ch DC Monitoring Module, 16-bit High-Precision Acquisition, Supports Voltage and Current Measurement, Modbus RTU Protocol, with Various Isolation and Protection Circuits

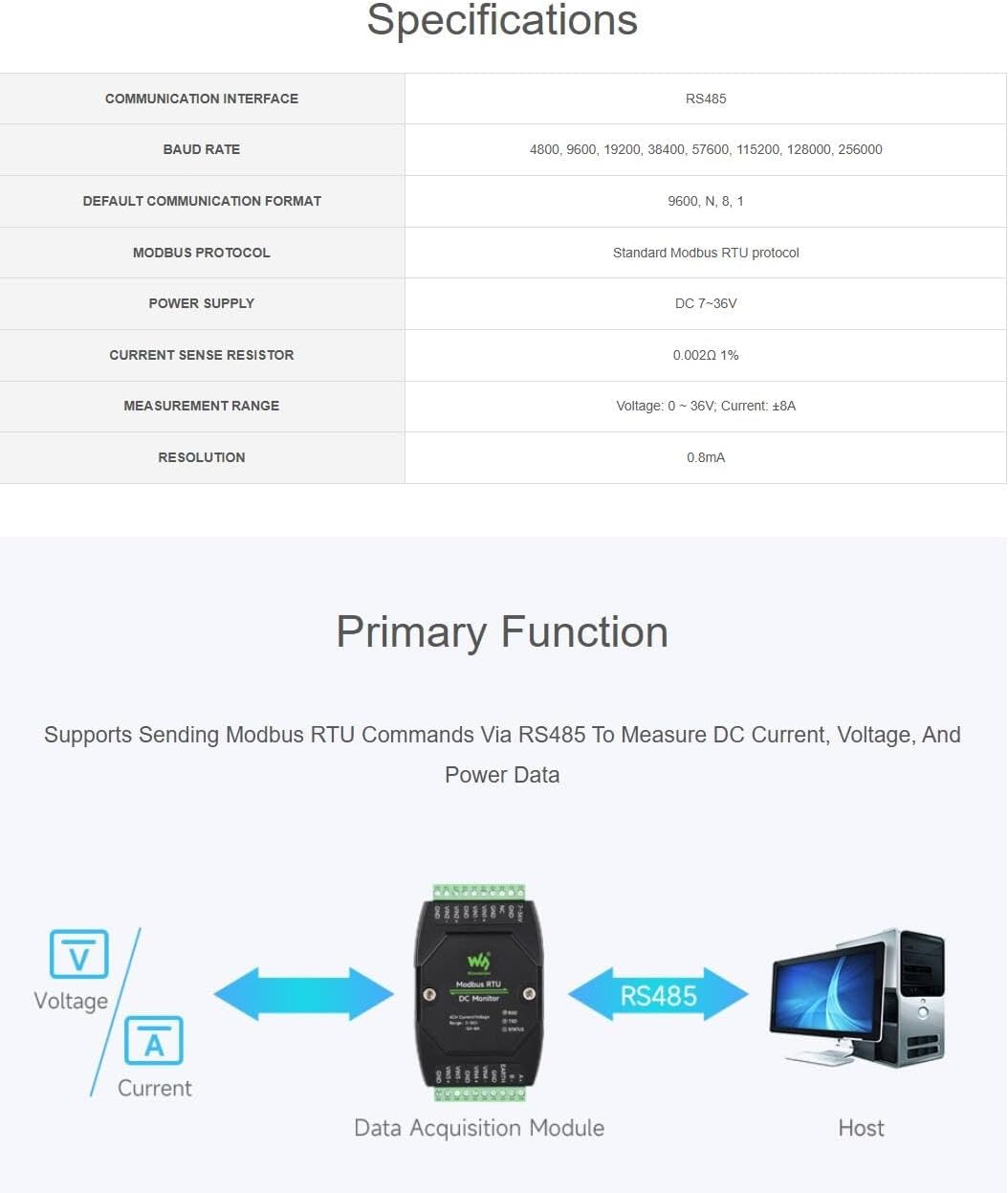

Features at a glance This product is an industrial-grade DC monitoring module supporting 4-channel measurement. Adopts Modbus RTU protocol with built-in protection circuits such as power isolation, optocoupler isolation, resettable fuse, and TVS. ● Configurable device address (1~255), multi devices can be cascaded on RS485 bus. ● Onboard voltage regulator, supports 7~36V wide range power supply. ● Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal. ● Onboard optocoupler isolation, allows signal isolation, high reliability, strong anti-interference. ● Onboard resettable fuse and TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, provides over-current/over-voltage proof, lightningproof & anti-electrostatic. ● Onboard 0.002Ω ±1% current sense resistor with 16-bit high-precision acquisition, capable of bidirectional current measurement. ● Supports voltage measurement up to 36V and current measurement up to 8A, with direct power measurement. ● Rail-mount case design, supports stacking combination, easy to install and safer to use. ● 3x LEDs for indicating the MCU status and signal transceiving status. Specifications Communication Interface: RS485 Baud Rate: 4800, 9600, 19200, 38400, 57600, 115200, 128000, 256000 Default Communication Format: 9600, N, 8, 1 Modbus Protocol: Standard Modbus RTU protocol Power Supply: DC 7~36V Current Sense Resistor: 0.002Ω 1% Measurement Range: Voltage: 0 ~ 36V; Current: ±8A Resolution: 0.8mA Package Content 1. Modbus RTU DC Monitor x1 2. Power supply terminal adapter x1 3. Screwdriver x1

• Configurable device address (1~255), multi devices can be cascaded on RS485 bus.
• Onboard voltage regulator, supports 7~36V wide range power supply.
• Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal.
• Onboard optocoupler isolation, allows signal isolation, high reliability, strong anti-interference.
• Onboard resettable fuse and TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, provides over-current/over-voltage proof, lightningproof & anti-electrostatic.
• Onboard 0.002Ω ±1% current sense resistor with 16-bit high-precision acquisition, capable of bidirectional current measurement.
• Supports voltage measurement up to 36V and current measurement up to 8A, with direct power measurement.
• Rail-mount case design, supports stacking combination, easy to install and safer to use. 3x LEDs for indicating the MCU status and signal transceiving status.
