ProTouch, 3.5" Touchscreen Remote Display for Blue Sky Energy Charge Controllers. Flush-Mounting, Battery Monitoring, and intuitive User Graphic Interface

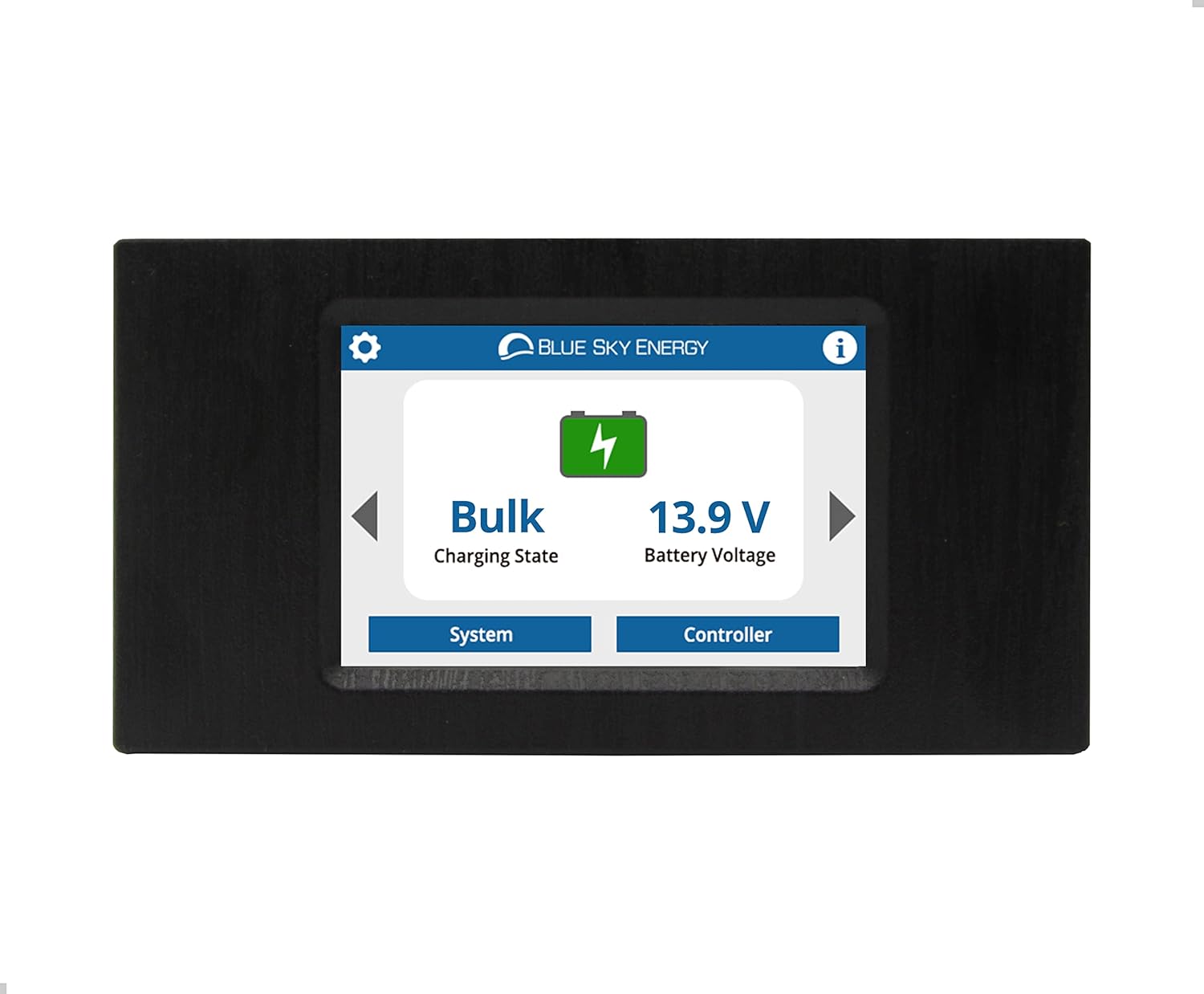

The ProTouch (PT) is a 3.5” flush-mounting touchscreen display compatible with any Blue Sky Energy charge controller with IPN network capability. It provides a user-friendly graphic interface for monitoring your solar system as well as five preset charge profiles for your charge controller. The ProTouch displays battery voltage, battery state, output current, and charge control system status for up to 8 charge controllers on a single IPN network (Master/Followers). ProTouch (w/o current shunt) for battery monitor ProTouch-S (with current shunt 500A/50mV) for full battery monitor Specifications: - 3.5” TFT touchscreen display - Flush-mounting - Display resolution 480x320 pixel - Power Consumption: Max. 1.5 W (100% backlite ON), 0.45 W in stand-by mode - Communication and Cabling: IPN Communication via 25' (7.6 m) RJ-11 (4-pin telephone cable provided) - Operating Temperature: -20 - +70C - Environmental Protection: IP20 - Dimensions: 2.81” x 5.51” x 1.59” (71.5 mm x 140 mm x 40.5 mm) - Weight: 5.30 Oz (150.2 g) - Warranty: 5-Year

• 3.5” Touchscreen remote display ideal kit for RVs/Motorhome/Botas, modern and intuitive User Graphic Interface (GUI) for an easy navigation through the data and settings
• 5 Preset charge profiles for Lead Acid (AGM and Flooded) and Lithium LiFePO4 batteries for an easy program of the charge controller
• Flush-mounting, intuitive icons, battery monitoring, and full data monitoring of solar panel and charge controllers (Master/Followers)
• Compatible with any Blue Sky Energy MPPT solar charge controllers with IPN capability, new or retrofit installations. Easy one-click installation via IPN cable (included)
• 5-Year Warranty, Made in the USA, FCC/CE/RoHS
